Using the GC3 alignment stick
Using Alignment Stick

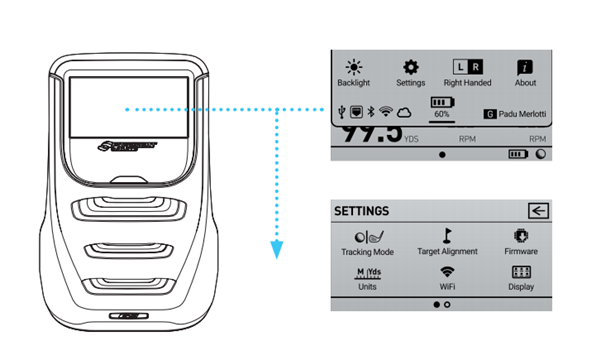

To activate target alignment, swipe down to access the Quick
Settings page. Select SETTINGS, then go to TARGET ALIGNMENT
USING THE ALIGNMENT STICK

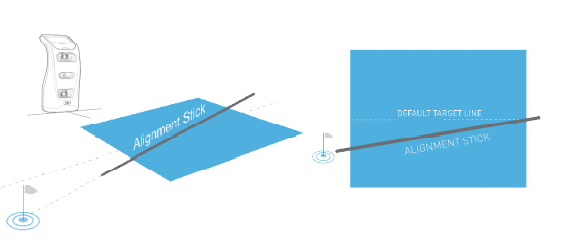

Target alignment can be adjusted up to 10 degrees on the GC3
via the FSS Alignment Stick. To adjust alignment, place the FSS Alignment Stick
in the GC3 hitting zone and align to your target. Once aligned, step away from
the device to allow for calibration.
Using the Alignment Stick

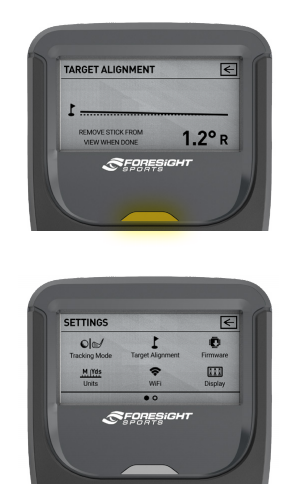

After a few seconds, both LED indicators will show yellow
and the unit will give an audible tone. The new alignment angle will be shown
on the LCD screen.
Alignment can be viewed and reset at any time from the
Target Alignment menu in System Options. To reset alignment to factory default
in this screen, press the OK key. Alignment is always reset when the unit is
powered off.
